Sized, started up, and supported by Advanced Industries — the everyday drive for pumps, fans, conveyors, mixers, and compressors.

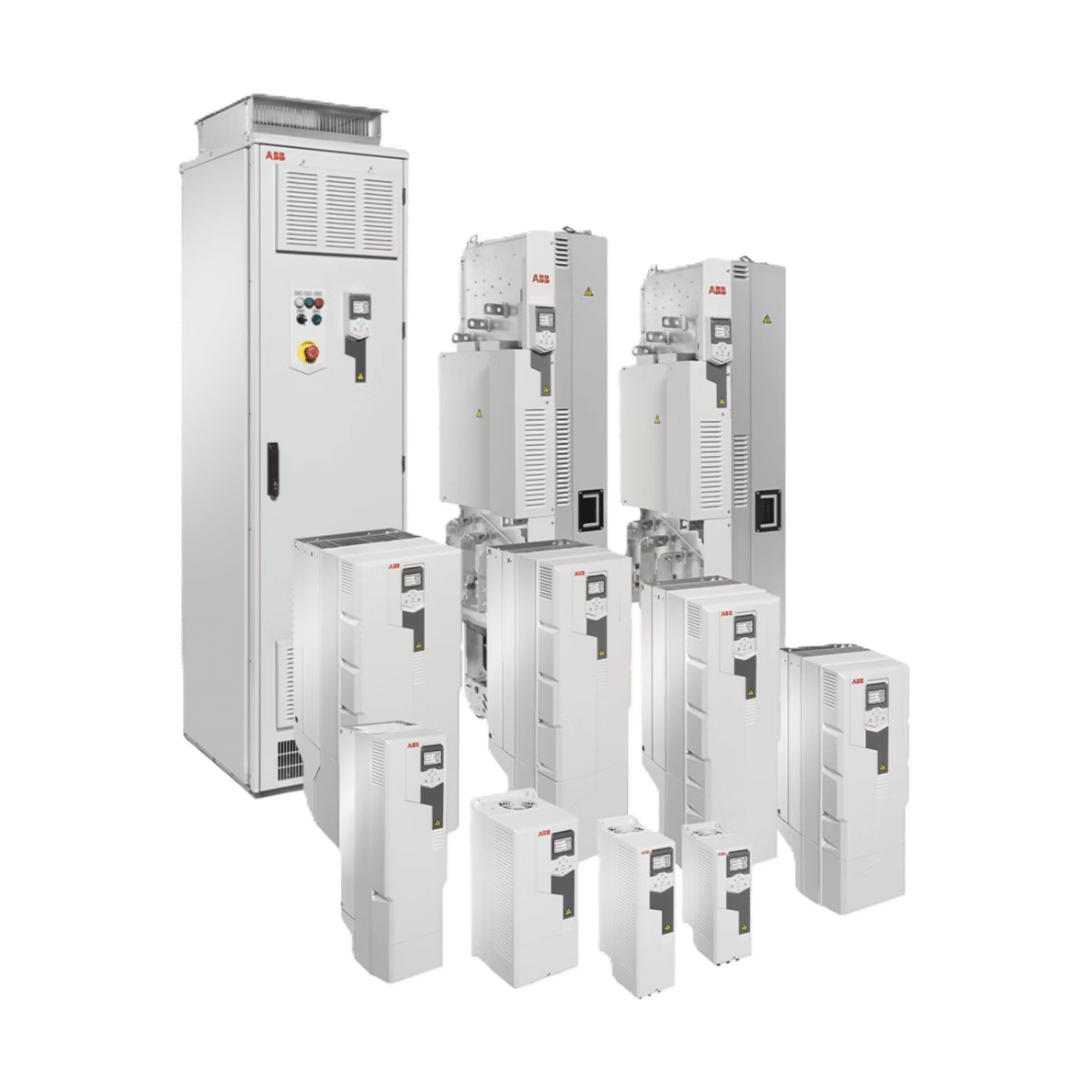

The ABB ACS580 is a general purpose variable frequency drive built to run the everyday motors that keep a plant moving. It ships ready to run, with a built-in EMC filter, an intuitive assistant control panel, and energy-saving features already on board, so it drops into most applications with minimal configuration.
What sets us apart from a catalog reseller is what happens after the purchase order. Our in-house team is ABB-certified to perform drive startup and troubleshooting on the drives you buy from us — so you’re not just getting a box, you’re getting it commissioned correctly and supported when something on the line acts up. We also stock ABB drives and common option cards across a range of amperage ratings, which means when a drive goes down, we can often get you running the same day.
0.75–500 kW
Approximately 1–700 HP
Up to 480 V
Wide voltage range from 200 V
SIL 3 / PL e
Safe Torque Off as standard
IP55/UL Type 12
Enclosure classes
Why the ACS580
Increased production uptime
Accurate and consistent speed and torque control in ACS580 drives ensure high production uptime, even with varying loads.
Seamless process optimization
ACS580 drives support a wide range of fieldbus protocols and scalable platform options, making process and component optimization straightforward.
Enhanced safety features
Built-in Safe Torque Off (STO) certified to SIL 3 / PL e, so the drive itself carries part of the safety system.
Scalable performance
The ACS580 is ideal for both energy-efficient applications and those requiring advanced speed and torque control.
Robust and reliable
With its durable construction and protection against earth faults, the ACS580 drive ensures reliable performance and extended equipment lifetime.
Enhanced performance
The ACS580 drive’s adjustable motor load capacity curves allow for optimized energy consumption and improved process productivity
North Texas Cement Plant, ~250 ABB Drives
Half a day of labor by one employee. No hardware, no downtime, no capital. Two years on, no performance impact on variable- or constant-torque loads — and $96,000 a year off the energy bill.
What Is a Variable Speed Drive?
A two-minute primer on what a VFD does, why running a motor at part speed saves so much energy on pumps and fans, and where a general purpose drive like the ACS580 fits. Worth a watch before you fill in the sizing form.
Ready to Size One?Technical Specifications
| Specification | Detail |
|---|---|
| Drive family | ABB ACS580 general purpose drives (ACS580-01 wall-mounted, ACS580-07 cabinet-built) |
| Power range | 0.75 to 500 kW (approximately 1 to 700 HP) |
| Voltage — 3-phase 208–240 V | 0.75 to 75 kW |
| Voltage — 3-phase 380–480 V | 0.75 to 355 kW (wall-mounted ACS580-01) |
| Motor control | Scalar and vector control |
| Overload | Heavy-duty and normal-duty ratings |
| Functional safety | Safe Torque Off (STO), SIL 3 / PL e |
| Protection class | IP21 / UL open type standard; IP55 / UL Type 12 options |
| Compliance | UL, cUL, CE, IEC 61800-series, EU Ecodesign IE2 |
Exact per-model ratings, frame sizes, and dimensions are in the ACS580 catalog linked below — our team confirms the right model during sizing.
Applications
The ACS580 is the workhorse for variable-torque and general-purpose motor control.
Industries We Serve
We support these drives across the industries we work in every day.
Downloads & Resources
ABB documentation for the ACS580, hosted here for quick reference.
Related Drive Pages
Request a Drive Sizing and Quote
Snap a photo of the motor nameplate and tell us the application. Our ABB-certified team sizes the ACS580 and quotes it with certified startup included.
